WPF.Pagination

A custom pagination control for WPF applications.

Table of Contents

• Introduction
• Features
• Installation
• Usage

Introduction

PaginationControl is a custom WPF control designed to provide an easy-to-use and highly customizable pagination component. It allows you to navigate through pages of data with simple commands and bindings.

Features

• Customizable styles for pagination buttons
• Visibility control for navigation buttons
• Simple data binding for current page and total pages
• Command support for page navigation

Installation

NuGet Package

To install the PaginationControl package via NuGet, use the following command in the NuGet Package Manager Console:

dotnet add package PaginationControl.WPF

or package Manager console

NuGet\Install-Package PaginationControl.WPF

Manual Installation

1. Clone the repository: https://github.com/madhawapolkotuwa/WPFPaginationDemo.git
2. Build the project and add the PaginationControl assembly as a reference in your WPF project.

Usage

To use the PaginationControl, follow these steps:

1. Add the XML namespace to your XAML file:

    xmlns:paginationcontrol="http://schemas.mpcoding.com/mpcoding/wpf/pagination"

2. Add the Pagination control to your XAML:

<paginationcontrol:Pagination
    CurrentPage="{Binding CurrentPage, Mode=TwoWay}"
    Pages="{Binding Pages}"
    Style="{DynamicResource PaginationStyle1}"/>

3. Add custom styles

<Style x:Key="pagingButtonActive" TargetType="Button">
    <Setter Property="Background" Value="#ce404f" />
    <Setter Property="Foreground" Value="#ffffff" />
    <Setter Property="FontSize" Value="20" />
    <Setter Property="Margin" Value="1,0" />
    <Setter Property="Template">
        <Setter.Value>
            <ControlTemplate TargetType="Button">
                <Border
                    Padding="10,5"
                    Background="{TemplateBinding Background}"
                    CornerRadius="5">
                    <ContentPresenter
                        Margin="0,0,0,1"
                        HorizontalAlignment="Center"
                        VerticalAlignment="Center" />
                </Border>

            </ControlTemplate>
        </Setter.Value>
    </Setter>
</Style>
<Style x:Key="pagingButton" TargetType="{x:Type Button}">
    <Setter Property="Background" Value="Transparent" />
    <Setter Property="Foreground" Value="#6c7682" />
    <Setter Property="FontSize" Value="20" />
    <Setter Property="Margin" Value="1,0" />
    <Setter Property="Template">
        <Setter.Value>
            <ControlTemplate TargetType="{x:Type Button}">
                <Border
                    Padding="10,5"
                    Background="{TemplateBinding Background}"
                    CornerRadius="5">
                    <ContentPresenter
                        Margin="0,0,0,1"
                        HorizontalAlignment="Center"
                        VerticalAlignment="Center" />
                </Border>
            </ControlTemplate>
        </Setter.Value>
    </Setter>
    <!-- If touch screen do not trigger the MouseOver Functions -->
    <Style.Triggers>
        <Trigger Property="IsMouseOver" Value="True">
            <Setter Property="Background" Value="#ce404f" />
            <Setter Property="Foreground" Value="#ffffff" />
        </Trigger>
    </Style.Triggers>
</Style>
<Style x:Key="PaginationStyle1" TargetType="{x:Type paginationcontrol:Pagination}">
    <Setter Property="Template">
        <Setter.Value>
            <ControlTemplate TargetType="{x:Type paginationcontrol:Pagination}">
                <ControlTemplate.Resources>
                    <BooleanToVisibilityConverter x:Key="booleanToVisibilityConverter" />
                    <paginationcontrol:StyleNameConverter x:Key="styleNameConverter" />
                </ControlTemplate.Resources>
                <Border
                    Margin="0,10,10,10"
                    Padding="5"
                    HorizontalAlignment="Right"
                    BorderBrush="#dee4ec"
                    BorderThickness="1"
                    CornerRadius="5">
                    <StackPanel Orientation="Horizontal">
                        <!-- Template elements -->
                    </StackPanel>
                </Border>
            </ControlTemplate>
        </Setter.Value>
    </Setter>
</Style>

4. Bind the CurrentPage and Pages properties to your view model:

public class YourViewModel : INotifyPropertyChanged
{
    private int _currentPage;
    private int _pages;

    public int CurrentPage
    {
        get => _currentPage;
        set
        {
            if (_currentPage != value)
            {
                _currentPage = value;
                OnPropertyChanged();
            }
        }
    }

    public int Pages
    {
        get => _pages;
        set
        {
            if (_pages != value)
            {
                _pages = value;
                OnPropertyChanged();
            }
        }
    }

    public YourViewModel()
    {
        Pages = 10;
        CurrentPage = 1;
    }

    public event PropertyChangedEventHandler PropertyChanged;

    protected void OnPropertyChanged([CallerMemberName] string propertyName = null)
    {
        PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(propertyName));
    }
}

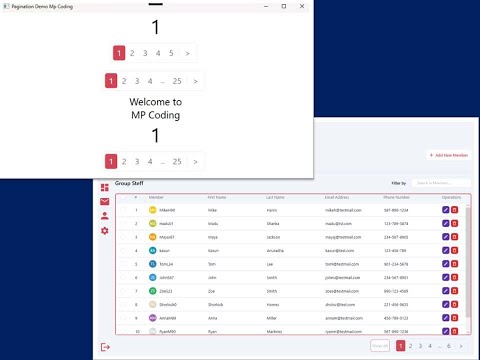

Video Tutorial

https://www.youtube.com/watch?v=q6gc97CD5oA
